Mini Concrete Mixer MX100 & MX125
Leave Message
【Optional Parts】
【Extra Parts】
【Features】
【Technical Specification】

Features:


  • Special casting or steel-sheet gear ring made in one piece.
  • Foldable frame for easy stock and transportation.
  • Solid frame for high stability.
  • Large 240mm diameter wheels for stability and maneuverability.

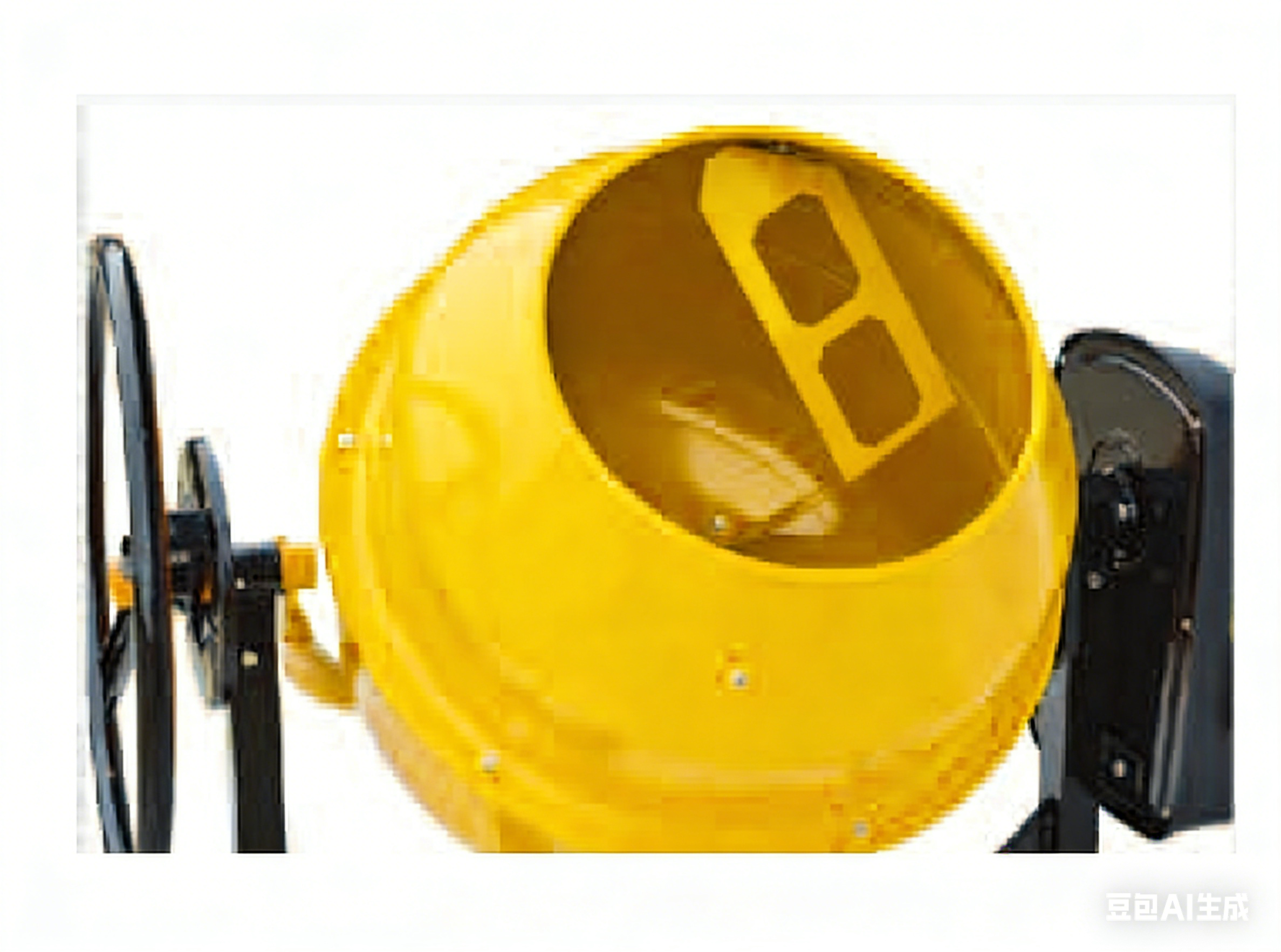

  • Large drum diameter for excellent mixing results.
  • Swivels and tilts 360' for easy and complete discharge.
  • Driving shaft mounted on sealed ball bearing.


Model Units MX100 MX125
Drum Capacity L 120 130
Power
 W 450 550
Drum Diameter
 mm 500 570
Drum Mouth
 mm 350 380
Drum Height
 mm 560 570
Drum Thickness
 mm 1.1/1.6
 1.1/1.7
Overall Dimention
 mm 1080 x 710 x 1190
 1180 x 720 x 1260
N.W
 kg 41 50


Manual download
