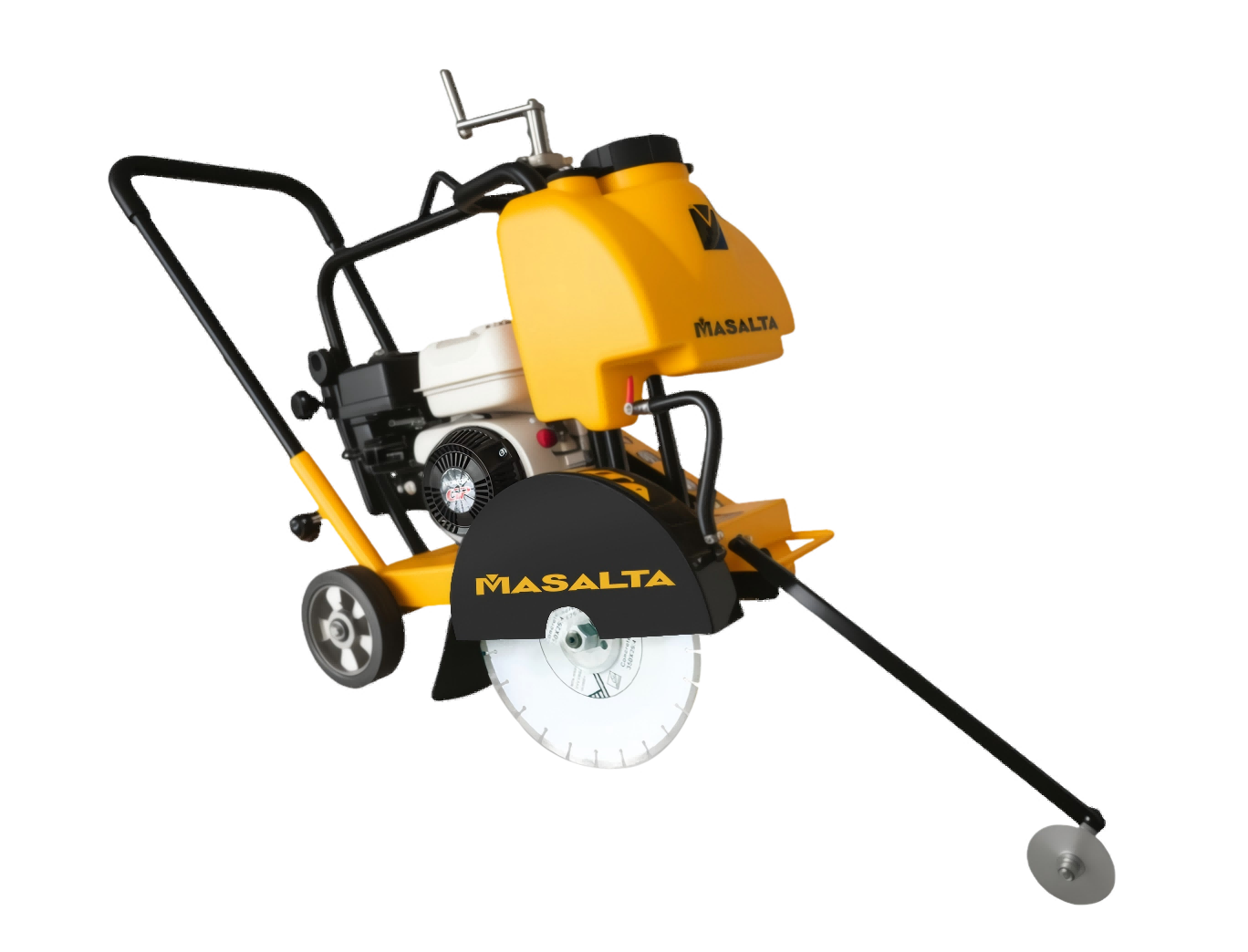

Masalta Floor Saw MF14 Cutting Machine

Masalta's floor saws are designed for strength, durability and performance. Whether cutting concrete or asphalt, the reinforced steel box frame design adds strength necessary to reduce vibrations while sawing. Minimizing vibrations enhances the performance of the blade and extends the life of the saw.


Features
  • Super-rigid box frame ensures straight cuts while resisting warping and vibration--prolongs saw life;extends blade life.
  • Japanese shaft bearings for long service life.
  • Height adjustable handle with comfortable grip handles.
  • Easy crank for raising/lowering cutting depth.
  • Hinged front,lift-up blade guard is designed to provide easy blade replacement.
  • Easy-remove,rustless poly water tank provides an optimum flow and volume ofwater to the blade.
  • Throttle control as standard part.

Laser welded,standard and professional grade for concrete,asphalt,brick and general purpose.

* Laser welded,standard and professional grade for concrete,asphalt,brick and general purpose.



Model MF14-1 MF14-2 MF14-3 MF14-4
Engine Air-cooled,4-cycle,single cylinder
Engine Type Diesel, KAMA KM173F Masalta G200F Robin EX17 Honda GX200
Power Kw(hp) 3.7(5.0) 4.1(5.6) 2.9(4.0) 4.1(5.6)
Operatiob Mass Kg(lb) 96(215) 84(188) 83(186) 84(188)
Max.Cutting Depth cm(in)
9(3.5)
Blade Size cm(in)
30-35 (12-14 )
Depth Adjustment
Handle Rotation
Driving Manual Push
Water Tank Capacity L(Gal) 12(2.6)
Dimension cm(in) 165x48x95(65x19x37)
